Additional Features:

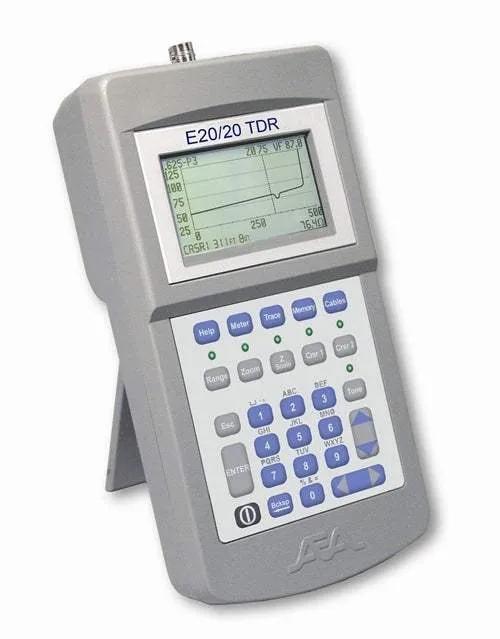

- E20/20N TDR
- Connector: N type
- Cable List: Broadcast. N-to-BNC Adapter & BNC to Alligator clips test lead
- Ranges: from 0-10ft (0-2m) to 20,000 ft (5Km)
- No dead zone on any range setting
- Range Zoom on Cursor
- Impedance zoom using Z Scale
- Cursor reading to ± ½ inch (10mm) using Zoom
- Cable List with 64 cable types
- Context Sensitive Help
- Cell phone style alpha-numeric entry pad
- Keypad LED indicators for active function
- Setup Wizard: step by step start up
- Cable toning: coax or twisted pair
- Stores 32 traces with name, date & time
- Includes: Soft carrying case, belt case, AC and DC power adapters, 8AA NiMH cells (installed), USB Cable, Printed Basic Guide, Laminated Quick Start Guide, and CD with ETDR PC Vision software, Operator Manual, Training presentation, Application Notes, and more.
Benefits:
- Coax and twisted pairs testing using same TDR
- Accurate and clearer trace indication of faults
- More advanced features to aid troubleshooting Save, upload, print or email traces
- Find faults other TDR’s miss
- Clear trouble more quickly with less testing Upload, download, and customize cable lists
- Saved traces are also saved setups for recall
- Noise detections and noise filter
- Locate coax runs or pairs quickly using Tone Function
- Setup Wizard makes training interactive
- “Belt Friendly” size and only 2 lbs (900g)
Equipped & Included Accessories:
- Connector: N type
- Cable List: Broadcast
- N-to-BNC Adapter & BNC to Alligator clips test lead
The E20/20N TDR stores, recalls and uploads traces to a PC by name, date and time. It has a user friendly interface to reduce technician learning curve and training time. Including features like Setup Wizard, named Menu keys, and Context Sensitive Help. The E20/20N TDR also has new MicroFault locating for small coax kinks and crushes that might be service affecting, but hard to see on a normal TDR trace. It has larger clearer display fonts and LED indicators for active Function Keys. The E20/20N TDR is ideal for testing and troubleshooting Coax, Twinax, Triax, Telco OSP, or LAN twisted pairs Cat 2 to Cat 6A. Its internal Cable List holds 64 cable types, can be user edited, and modified lists can be uploaded or downloaded to a PC using ETDR PC Vision™ software.
