Features:
- 42° and 14° lenses with 320 x 240 resolution
- Object temperature range: -4 to 1202°F (requires T199616 upgrade for high temperature functionality; see "Options & Accessories" tab for details)
- 1 x 4 continuous zoom
- Reduce strain of full-day inspections with 180° rotating optical block for imaging targets overhead or below
- Scan large areas from safe distances, delivering 161,472 non-contact temperature measurement points
- Share lenses (wide angle to telephoto) across your fleet of cameras, thanks to AutoCal optics
- Ensure crisp thermal imagery and spot-on temperature readings every time with laser-assisted autofocus
- Get image clarity from FLIR Vision Processing, with MSX, UltraMax, and proprietary adaptive filtering features
- Determine accessibility of components for repair with one touch by activating on-screen laser distance measurement
- See problems and make decisions easily, thanks to scratch-resistant 4 in. LCD display
- Quickly access menus, folders, and settings using intuitive controls, including rapid-response touchscreen and two programmable buttons
- Allow customers to observe critical findings in real time through Wi-Fi streaming to FLIR Tools app
- Optimize workflows with streamlined reporting features, such as built-in voice annotation, text comments with auto-fill, and image sketch
- Prepare precise documentation with embedded GPS locations, as well as measurement data from METERLiNK-enabled FLIR clamps and multimeters
- Laser distance and on-screen area measurement
- Customizable work folders
- Intelligent, interchangeable AutoCal lenses
Accessories:
- Thermal Imaging Camera
- 24° Lens
- 42° Lens
- Batteries
- Battery Charger
- Hand Strap
- Hard Transport Case
- Lanyard
- Front Lens Cap
- Power Supplies
- SD Card (8 GB)
- USB 2.0 A to USB Type-C Cable
- USB Type-C to HDMI Cable
- USB Type-C to USB Type-C Cable
- User Manual

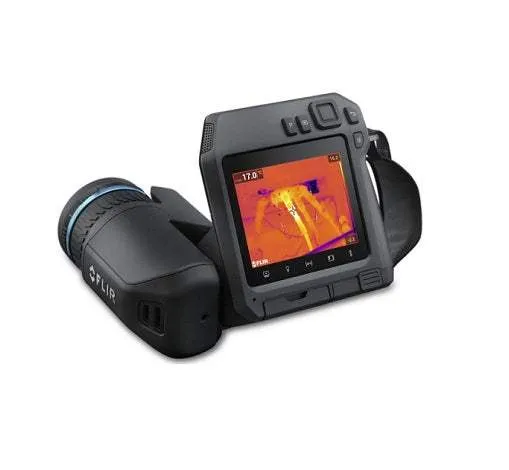

The FLIR T530-42-14 Thermal Imaging Camera with MSX, UltraMax, 24°/42° Lenses, 320 x 240, -4 to 1202°F, 30 Hz is designed to support advanced thermographers and IR service consultants in the power generation, electrical distribution, and manufacturing industries, by focusing on resolution, speed, and ergonomics. With the 180° rotating optical block, vibrant LCD display, and streamlined form factor, the T530-24-42 offers inspectors the necessary tools to support comprehensive inspections in challenging conditions, especially when equipment is obstructed from view or difficult to access.
