Comes with:
- Processors - 4 x Intel® Xeon® E7-8890v4
- Memory - 256GB (16x16GB DIMMs) PC4- 2400P-R DIMMs (DDR4) installed in (8) Memory Cartridges
- Network Controller - HPE FlexFabric 10Gb 2P 534FLR-SFP Adapter
- Storage Controller - HPE Smart Array P830i/4GB FBWC 12Gbps SAS controller
- Hard Drive - 5 SFF HDD/SSD drive bays. No drives ship standard.
- Optical Drive - None
- PCIe Slots - 9 PCIe Gen3.0 I/O Expansion slots (5x16 slots, 4x8 slots)
- Power Supply - (4) HPE 1500W Common Slot Platinum Plus Hot Plug Power Supplies
- Fans - 4 hot plug fans (eight rotors with N 1 redundancy)
- Management - iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (standard), Insight Control (optional), HPE OneView (standard)
- Energy Start - N/A
- Form Factor - Rack (4U), rail kit and cable management arm are included

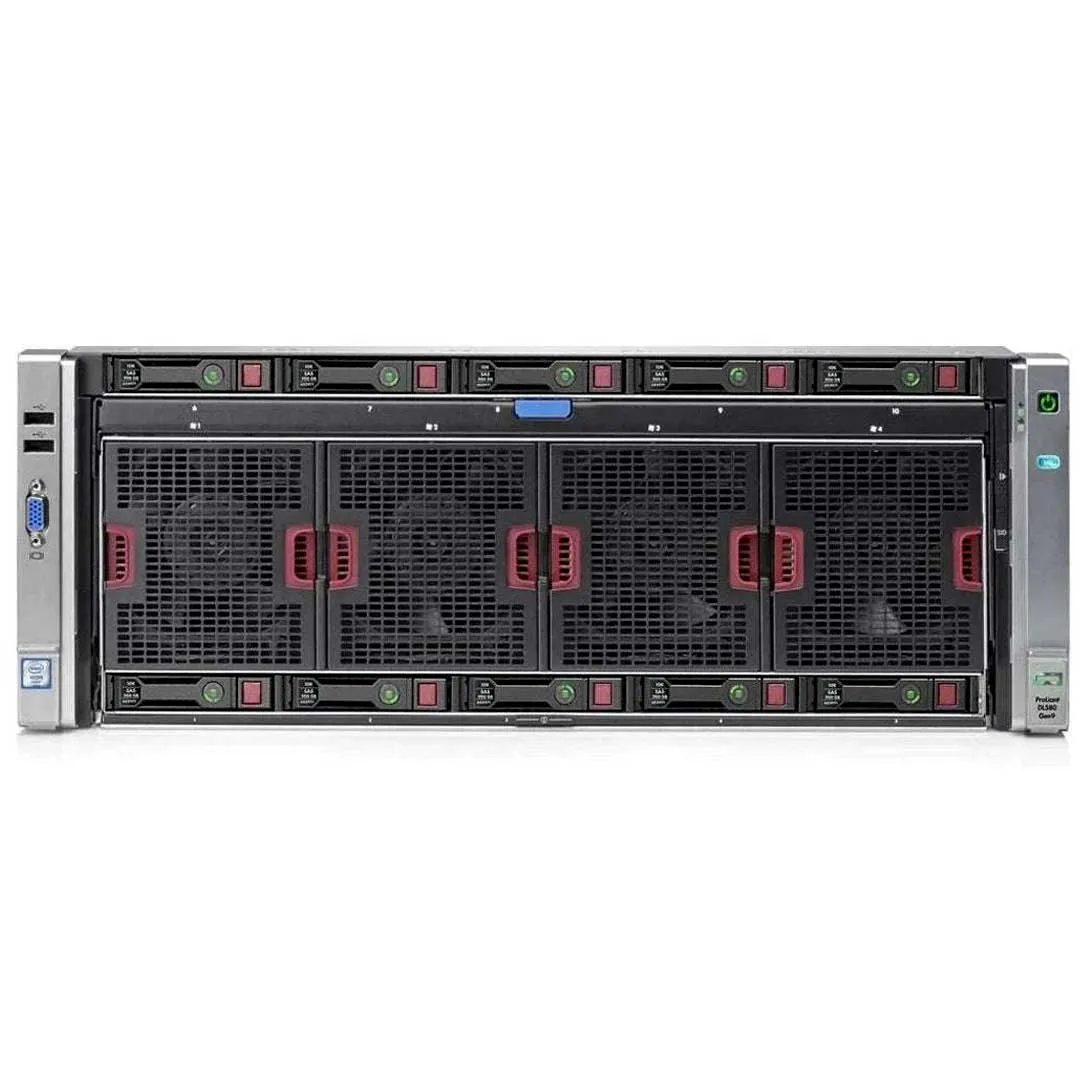

The refurbished HPE ProLiant DL580 Gen9 Server is the 4S enterprise standard x86 server offering commanding performance, rock-solid reliability and availability, and compelling consolidation and virtualization efficiencies. Supporting Intel Xeon E7-4800/8800 v4/v3 processors, the DL580 Gen9 Server offers enhanced processor performance, up to 6 TBs of memory, greater IO bandwidth (9 PCIe Gen 3.0 slots), and 12 Gb/s of SAS speeds.
The HP ProLiant DL580 Gen9 Server is ideal for mission-critical enterprise, business intelligence, and database applications. This server can handle your most demanding workloads, business data, and advanced analytical tasks— while freeing IT teams to focus on innovations for your business.
What's New for DL580 Gen9
- New 128GB memory
- HPE Lockstep memory mode FIO setting
- HPE 2.4TB SAS 12G Enterprise 10K SFF SC 512e DSF HDD
Commanding Performance and Scalability
The HPE ProLiant DL580 Gen9 Server provides up to 26% increased processor performance with Intel Xeon E7-4800/8800 v4/v3 processors than the previous generation.
HPE SmartMemory prevents data loss and downtime with enhanced error handling. Support of up to 6 TB DDR4 max capacity (96 DIMM slots) with speeds up to 2400MHz with up to 23% performance gain. Ideal for large-scale in-memory computing and virtualization.
Comes standard with nine FL/FH PCIe 3.0 slots for GPGPUs and choice of HPE FlexibleLOM or PCIe standup 1GbE, 10GbE or InfiniBand Adapters provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
Faster access to your data with the redesigned HPE Flexible Smart Array and HPE Smart SAS HBA Controllers allow you the flexibility to choose the optimal 12 Gb/s SAS controller most suited to your environment. Additional support for HPE NVMe Mixed Use and Write Intensive PCIe Workload Accelerators.
Rock-solid Availability and Reliability
The HPE ProLiant DL580 Gen9 Server provides increased system availability and less need for service with advanced error recovery, error diagnosis, and built-in redundancy; all features of the DL580 Server Comprehensive Fault Management and Diagnostics.
Improved reliability and data protection with HPE Smart Array Controllers featuring HPE Secure Encryption and Advanced Data Mirroring, and HPE SmartDrive technology.
Increased security with four new levels of Secure Boot with Unified Extensible Firmware Interface (UEFI) mode.
HPE Proactive Care Services helps customers prevent problems before they occur by integrating uptime and productivity into a personalized, simplified support experience.
