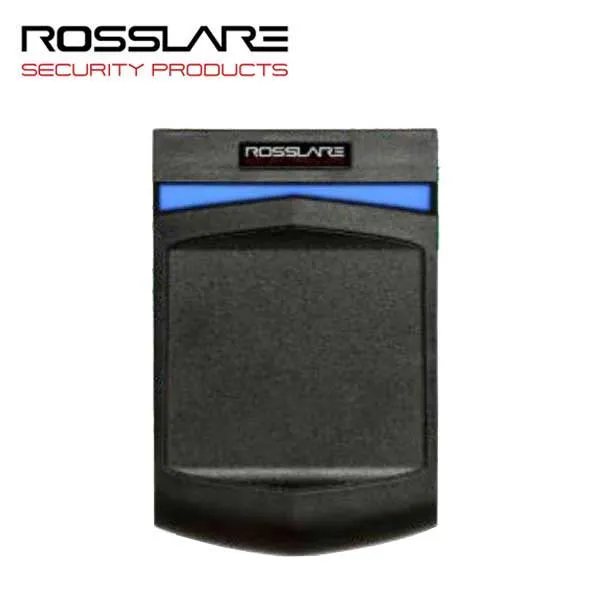

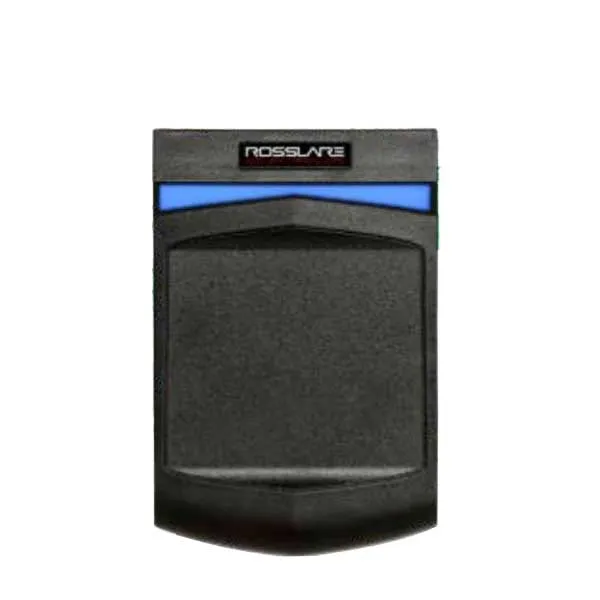

Rosslare’s Open to Secure™ (O2S®) reader is a highly flexible smart card reader that redefine ease of use and high security in the world of RFID access control solutions. The readers support reading from and writing to the secure memory of the world’s most accepted RFID technologies – MIFARE® Plus, and MIFARE Classic® EV1. with MIFARE credentials, you have access to the highest levels of cryptographic security with support for 128-bit AES encrypted communications between reader and credential. With O2S preprogrammed readers and credentials, you can have the highest level of secure access control solutions right out of the box. The AY-H6270 readers are compatible with Rosslare's controllers and many other third-party Wiegand controllers. Included Terminal Blocks and OSDP Support.
Features
- Contactless smart card reader (13.56 MHz)
- Meets ISO14443 Type A Standard
- AES 128-Bit encryption during transmission (MIFARE Plus)
- Reads O2S ID data from O2S credentials
- Reads CSN of non-O2S credentials
- Output formats: Wiegand (per format on O2S credential) OSDP via RS-485
- RGB multi-color light indicator
- Blue backlit tact switch keypad
- Fully-potted construction for indoor and outdoor use
- Optical back tamper sensor
- Two LED control inputs
- Buzzer control input
- Terminal block connectivity
Specifications:
| Operating Voltage Range: | 6 to 16 VDC |
| Standby Input Current at 12V: | 85 mA |
| Maximum Input Current at 12V: | 110 mA |
Read Range: |
MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE Plus: 25 mm (1 in.) |
| LED Control: | Two Inputs: Green LED CTL and RED LED CTL – TTL |
| Auxiliary Input: | Buzzer CTL or Hold CTL – TTL |
| Auxiliary Output: |
Tamper Output (OC, active low, max. sink current 30 mA) |
| Supported Data Formats: | Wiegand (per format on O2S credential) OSDP via RS458 (selected models) |
| Maximum Cable Distance to Controller: | Wiegand: 150 m (500 ft) with 18-AWG cable OSDP (RS-485): 1200 m (4,000 ft) with 2x2 18-AWG twisted shielded cable |
| Compatible Cards: | MIFARE Plus X/S (2K, 4K) and MIFARE EV1 Classic (1K, 4K), |
| Dimensions of Terminal Block and OSDP: | 120.0 x 80.0 x 31.0 mm (4.7 x 3.2 x 1.2 in.) |
| Product Warranty: | 5-Year Limited Product Warranty |
| Device Certifications: | IP65 |
