The Zamp Solar PT20 Solar Charge Controller automatically controls solar charging power to protect AGM, Gel, Wet, and Lithium batteries. The ultra-rugged "all-weather" unit comes with a temperature sensor (2.9m), a pre-terminated weather-resistant ATP battery connection (3m), and a pre-terminated weather-resistant ATP solar input adapter.
Protects and Regulates
The patented Pulse Technology ensures an effective desulfation to extend the life of batteries. The temperature sensor is used only with lead-acid/AGM batteries for optimal charging and safe temperature compensation. The adapter allows a bare wire connection to solar input. All our charge controllers use pulse width modulation (PWM) and five stages of charging to regulate the flow the electricity to your battery. This protects your battery from overcharging, expands your battery’s lifespan, and keeps your panel safe from back flow electrical currents, among many other protections and benefits.
Monitors and Indicates

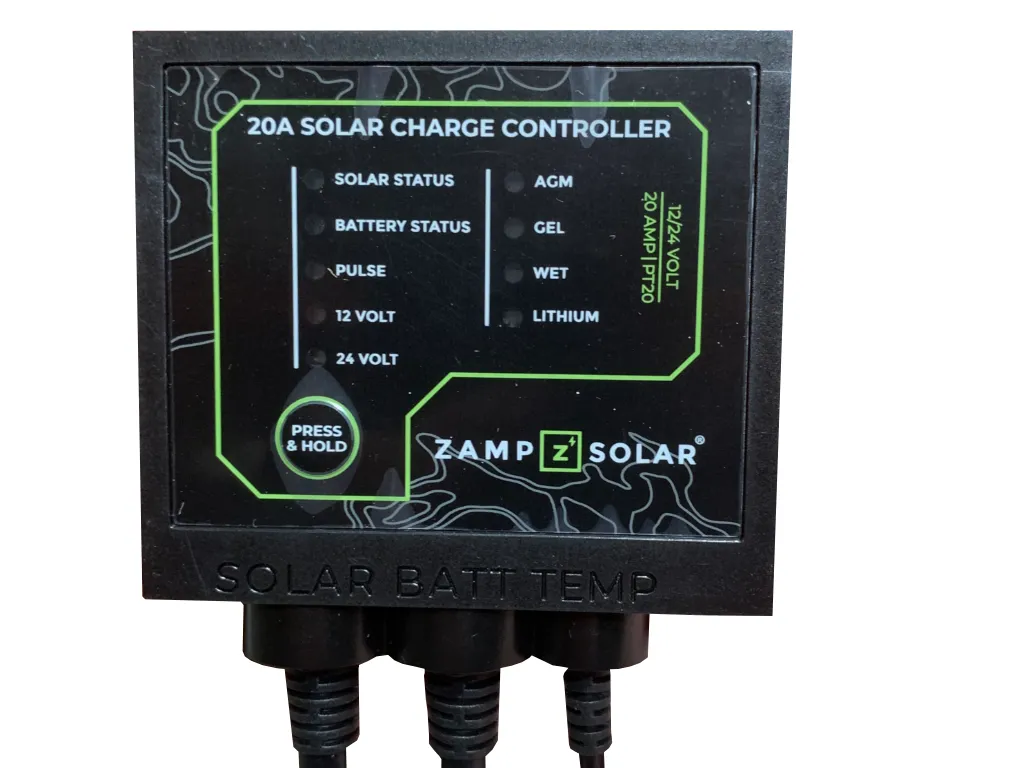

Its large digital display lets you monitor battery voltage, charging current, charging capacity (amps per hour), battery types, full charge, and system faults. Colored LEDs indicate operational status and battery conditions.
Flexible and Customizable
Our 20-amp charge controller is weather resistant and can be surface-mounted on your wall, or flush-mounted inside the wall. It is also compatible with our battery temperature cable.
20-Amp Charge Controller Specs:
Maximum Watt Input: 400 Watt
Amps: 20
Lithium Compatibility: Yes
Remote Display Compatible: No
Battery Temperature Sensor Compatible: Yes
Mounting Options: Surface
