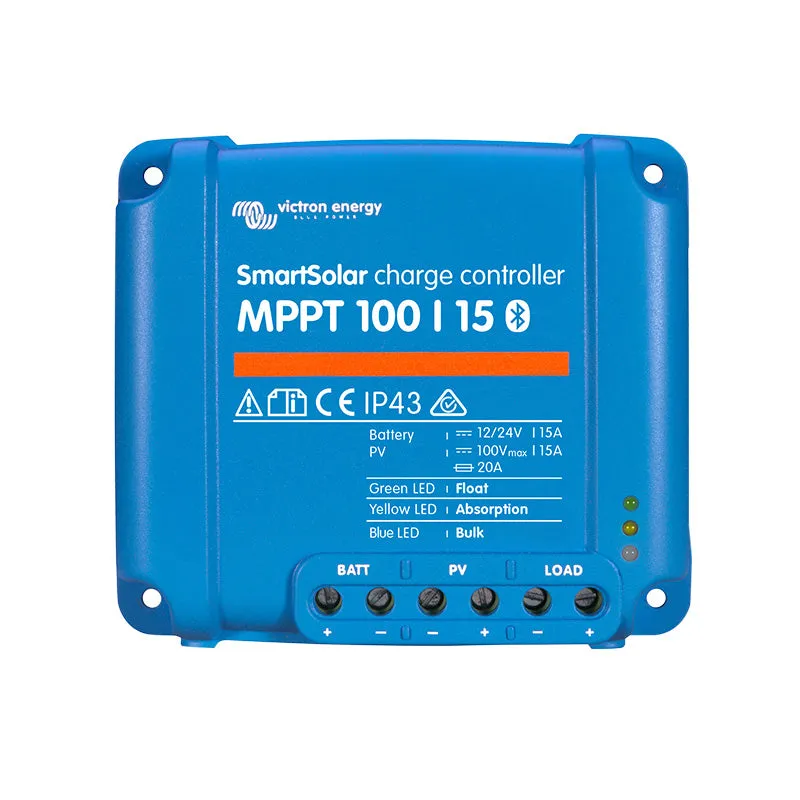

Technical Specifications

• Battery Voltage: 12 V / 24 V (Auto Select).
• Rated Charge Current: 15 A.
• Nominal PV Power (12V): 220 W.
• Nominal PV Power (24V): 440 W.
• Max. PV Short Circuit Current: 15 A.
• Automatic load Disconnect: Yes, Maximum 15 A.
• Maximum PV Open circuit Voltage: 100 V.
• Peak efficiency: 98 %.
• Self-consumption: 10 mA.
• Charge Voltage 'Absorption': 14,4 V / 28,8 V (Adjustable).
• Charge Voltage 'Float': 13,8 V / 27,6 V (Adjustable).
• Charge Algorithm: Multi-stage Adaptive.
• Temperature Compensation: -16 mV/°C resp.-32 mV/°C.
• Continuous Load Current: 20 A.
• Low Voltage disconnect: 11,1 V/22,2 V or 11,8 V/23,6 V or Battery Algorithm.
• Low Voltage reconnect: 13,1 V/26,2 V or 14 V/28 V or Battery Algorithm.
• Protection: Battery reverse polarity (Fuse) / Output Short circuit/ Over temperature.
• Operating Temperature: -30 °C to 60 °C (full rated output up to 40 °C).
• Humidity: 95% Non-condensing.
• Data Communication: VE. Direct.

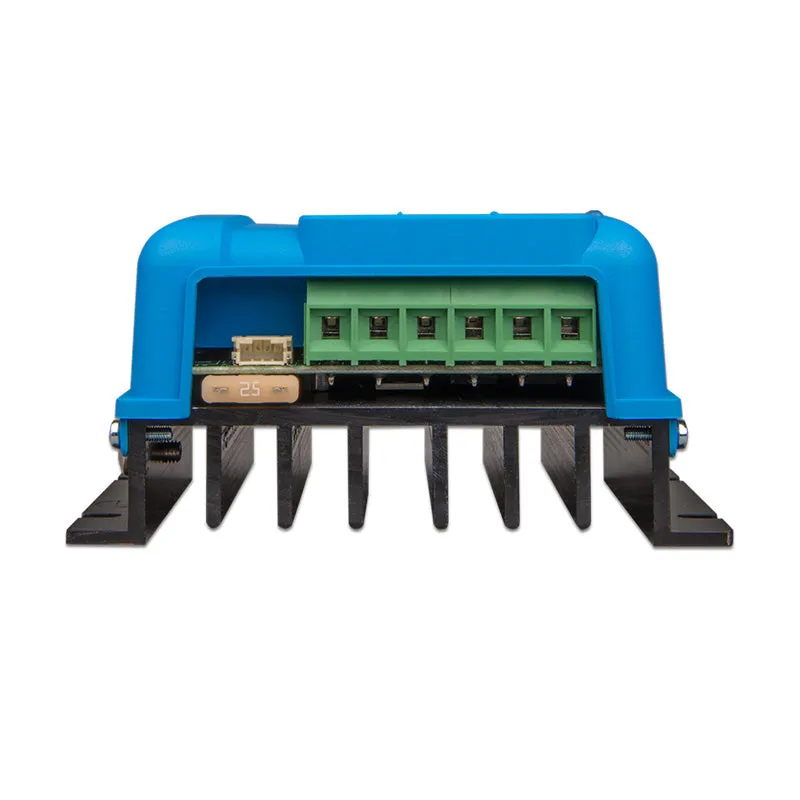

Enclosure

• Colour: Blue.
• Power Terminals: 6 mm² / AWG10.
• Protection Category: IP43.
• Weight: 0.60 kg.
• Dimensions: 100 mm x 113 mm x 50 mm.
